cool satellite image Chud 04/02/24 (Tue) 23:54:09 №27036 [Quote]

picked it up with an old scanner and decoded it and i wonder if there are any 'teens here who do this. first image ive recieved and its good and i think i want to spend my entire weekend collecting these.
>doxxerald

Chud 04/04/24 (Thu) 02:07:24 №27059 [Quote]

cool, are you interfacing with a computer to pick up the image, in detail id like to hear more about ur setup. I love rf.

Chud 04/05/24 (Fri) 00:10:22 №27091 [Quote]

File: IMG_0069.jpeg 📥︎ (4.68 MB, 4032x3024) ImgOps

>>27059

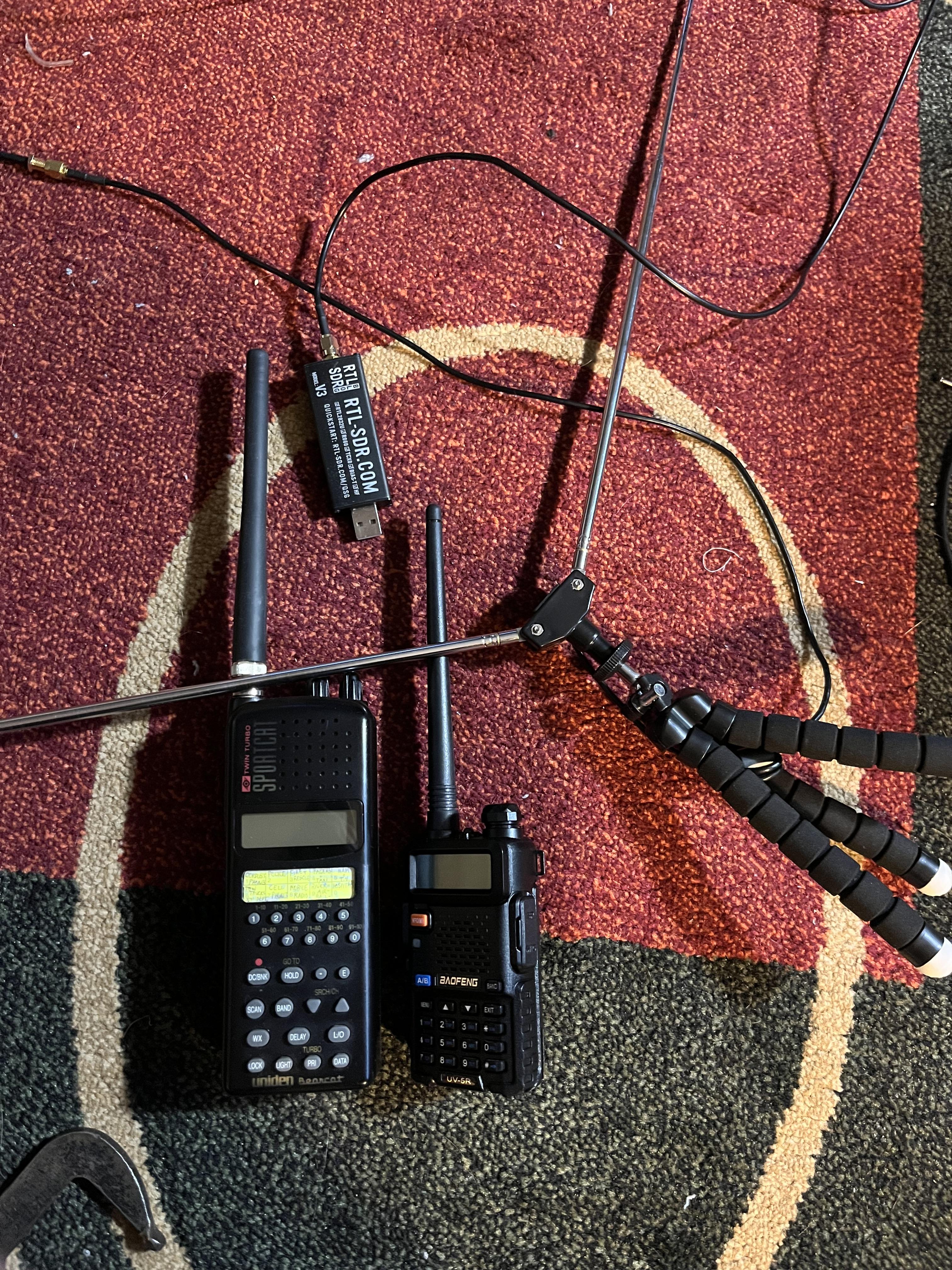

i do interface with a computer, the scanners in picrel i plug directly into my laptop and record data with audacity. the usb dongle uses software called sdr++ to tune frequencies and record.
the rabbit ears antenna in the pic is the best way to receive the satellite signals. each pole is 20.5 inches long and spaced apart from each other by 35.5 inches, or 120 degrees. i mount it horizontally on a wooden pole and facing the direction the satellite comes.

Chud 04/06/24 (Sat) 00:28:54 №27102 [Quote]

File: avhrr_3_rgb_MCIR.png 📥︎ (1.85 MB, 909x1206) ImgOps

new pic dropped

Chud 04/06/24 (Sat) 09:43:11 №27117 [Quote]

>>27036
That's pretty cool, nice work!

Chud 04/06/24 (Sat) 23:00:00 №27136 [Quote]

i have but its pointless

Chud 04/07/24 (Sun) 17:05:28 №27143 [Quote]

>>27036
Cool

Chud 04/09/24 (Tue) 05:52:06 №27178 [Quote]

>>27091
is the RTL-SDR even any good? ive been wanting an sdr for years but i dont wana get chinkscammed

Chud 04/12/24 (Fri) 03:50:38 №27194 [Quote]

>>27178
Its amazing for the price. Only thing better would be the HackRF, but that's around twice the price. Just make sure you don't accidentally buy a fake. They look really close, but are total chinkshit

Chud 04/13/24 (Sat) 18:11:35 №27215 [Quote]

>>27194
so that means using amazon is out of the question?

Chud 04/15/24 (Mon) 01:06:43 №27235 [Quote]

>>27215
the rtl sdr website tells you how to spot fakes i bought mine on amazon and its good. just look at whos selling and what reviews are saying if you go amazon.

Chud 04/15/24 (Mon) 03:41:31 №27237 [Quote]

>>27235
ah cool, how much are the real ones (preferably with a link cuz im lazy like that and amazon is slow garbage sometimes) and what software does it need though?

Chud 04/16/24 (Tue) 01:05:31 №27251 [Quote]

>>27237
https://www.amazon.com/RTL-SDR-Blog-RTL2832U-Software-Defined/dp/B0BMKB3L47/ref=sr_1_3?dib=eyJ2IjoiMSJ9.wcv9aDsypmCuHFcT1GE1VghYzD3vTEotuTRV5vZjXaaRxFYiZuAao1bILO7jP9q1dlQ4smtTN9dlSN4wvVesG0dJZvCHmjSZHWcg73yd6BQUFJ6HRqqgIgvAWMTxOK0UiMJZKYYLz6cP5AgrrrUMVzLB00OgsKiHyj7YiFBPAh1AsS2VY8Dsl_9epHVE6esP3tGYFQTeX6r6PoA0zxHncmPc6QWKri_T9PNuX8FH5XY.17AfYey5Acvr6AuoNXpGwYM-iHuq56vmUn0KfYdR0k8&dib_tag=se&keywords=RTL-SDR%2BBlog&qid=1713229236&sr=8-3&th=1

$43. this is the one i bought that comes with antenna and stuff. theres a ton of software to choose from but i use CubicSDR to tune and listen to frequencies

Chud 04/16/24 (Tue) 01:06:40 №27252 [Quote]

>>27237
https://www.rtl-sdr.com/buy-rtl-sdr-dvb-t-dongles/
also heres the site that links to amazon sellers they trust

Chud 04/16/24 (Tue) 01:54:53 №27253 [Quote]

File: 1687984810230.gif 📥︎ (188.78 KB, 265x400) ImgOps

>>27251
>>27252
ah cool, thanks

Chud 04/16/24 (Tue) 03:49:28 №27255 [Quote]

File: trollplier.jpg 📥︎ (45.12 KB, 600x800) ImgOps

File: ClipboardImage.png 📥︎ (583.61 KB, 1360x768) ImgOps

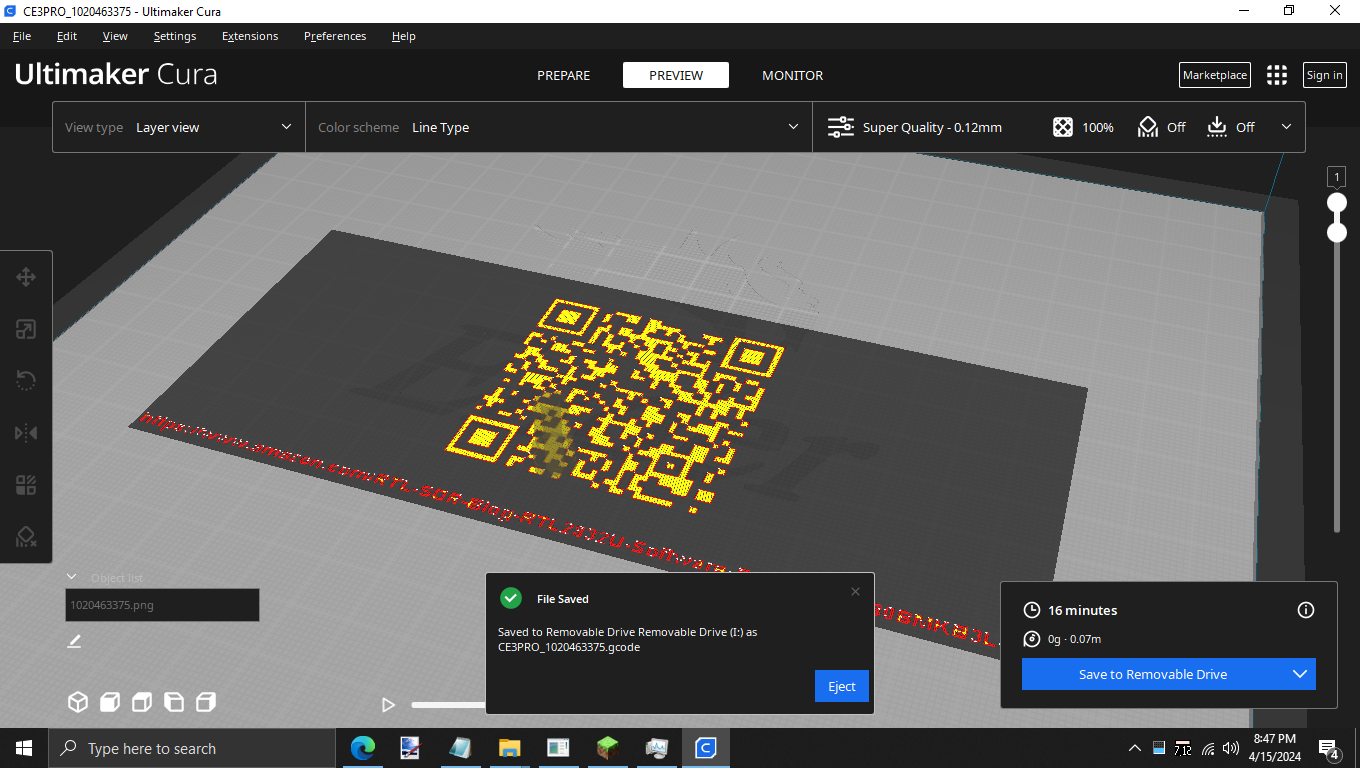

who the hell needs a real printer for putting the link on paper, hopefully theres enough money on the amazon card i got for charismas

Chud 04/18/24 (Thu) 02:49:40 №27275 [Quote]

>>27178
It's a gem. Originally made to pick up TV signals which is why it was mass produced and so cheap.

Chud 05/02/24 (Thu) 06:30:23 №27499 [Quote]

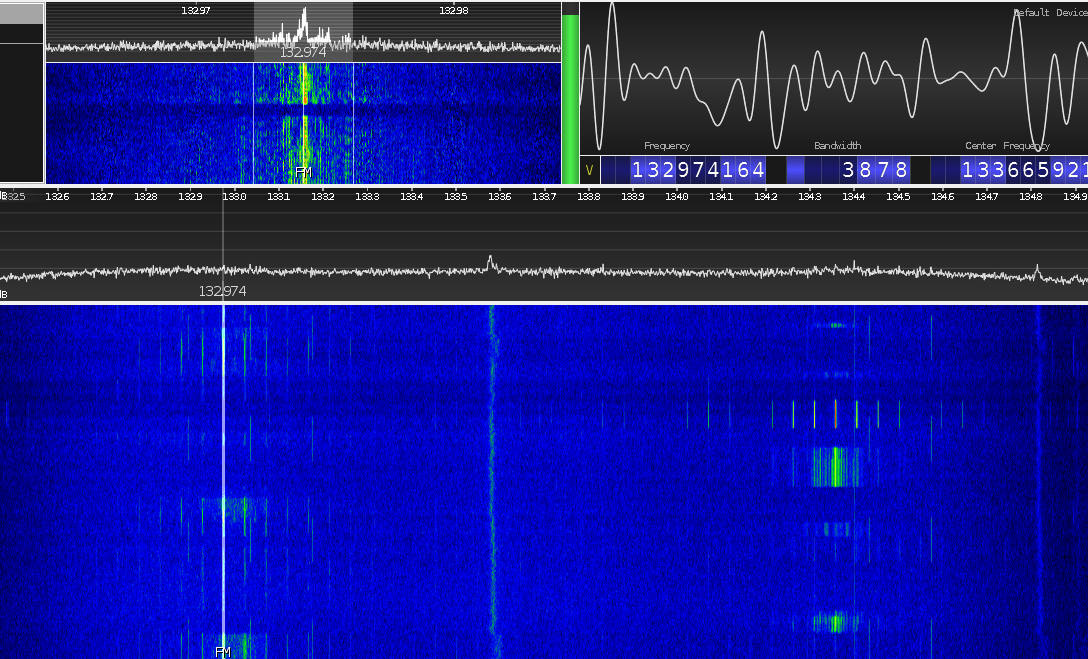

it arrived, any cool frequencies other than the broadcast band(s)? i cant seem to find anything shortwave (4, 8, and 10 mhz time channels) or AM broadcast (loop antenna required?) and or the weather satilite stuff too, i could see the ones in the ~130 mhz range even indoors

Chud 05/02/24 (Thu) 06:30:47 №27500 [Quote]

File: ClipboardImage.png 📥︎ (804.47 KB, 1088x659) ImgOps

>>27499
>file selector bug again award

Chud 05/05/24 (Sun) 18:38:12 №27569 [Quote]

>>27499
2 meter ham is in the 140's if you like listening to boomers

Chud 05/05/24 (Sun) 18:40:28 №27570 [Quote]

>>27499
also if you want to get the best results possible from satellites use satdump. you basically just tell it what satellite you want to catch and it will select the frequency for you and decode in real time

Chud 05/05/24 (Sun) 20:01:48 №27572 [Quote]

>>27570
>>27569
oh ok, also have an scad file for a cable spool to keep the cable from becoming a tangly mess

union(){
cube([8, 170, 8]);
translate([30, 0, 0]){
cube([8, 170, 8]);
}
translate([0, 20, 0]){
cube([30, 8, 8]);
translate([0, 120, 0]){
cube([30, 8, 8]);
}
}
}

Chud 05/07/24 (Tue) 06:53:16 №27613 [Quote]

satdump gave an error about sample rate (SPS) for some reason, and are there any good ones to try and read from that dont use the 1.7GHZ bands? i dont have the LNA or the dish antenna (could a satellite TV dish be modified to work?)

Chud 05/07/24 (Tue) 23:23:25 №27637 [Quote]

>>27613
noaa 15 18 and 19 transmit apt on 137mhz. very easy to catch with just a v dipole

Chud 05/08/24 (Wed) 22:42:19 №27646 [Quote]

>>27613
watch the yt channels saveitforparts and dereksgc they answer a lot of questions you would have
